GCanvas Android Guide

Integrate to Android

Tip: The following documents assume that you already hava a certain Android development experience.

Prerequisites

Make sure the following configuration is completed:

JDK >= 1.7 , and configure the environment variable
Android SDK installed and configure the environment variable
Android SDK version 23 (compileSdkVersion in build.gradle)
SDK build tools version 21.1.2 (buildToolsVersion in build.gradle)
Android Support Repository >= 17 (for Android Support Library)
Weex SDK >= 0.16.X
Android NDK >=18

Quick to use

The steps are as follows:

Create an Android project. There is nothing to be specified, according to your habits to.
At this moment, our publication is being reviewed by Maven. Once published, source code dependency will be changed to AAR dependency. .If you want to use the GCanvas On Android,You Can download source code, update build.gradle by adding the following dependencies. The Method is include the weex-brigdes project in your setting.gradle. Like this

include ':app'
include 'weex_bridge'
project(':weex_bridge').projectDir = new File('path to gcanvas/GCanvas/brgides/weex-bridge/android/weex-brigde')

When you include the weex-brigde to your project,you can add the dependency config to the weex-brigde

dependencies {
  implementation project ':bridges:weex-bridge:android:weex_bridge'// include gcanvas-weex-brigde
}

Maybe there are some error when you use source code dependency.You can copy the this config to your root project build.gradle

rootProject.extensions.sdks = [
        'Gradle'        : '3.0.1',
        'CompileSDK'    : 28,
        'BuildTool'     : '28.0.3',
        'MinSDK'        : 16,
        'TargetSDK'     : 28,
        'Fresco'        : '1.8.0',
        'Picasso'       : '2.5.2',
        'JUnit'         : '4.12',
        'Support'       : '26.0.2',
        'Weex'          : '0.18.18.17',
        'WeexAnnotation': '1.3',
        'ReactNative'   : '+',
        'ABIs'          : ["armeabi-v7a","arm64-v8a"],
        'EXCLUDE_CPP_SHARED' : false
]

// PLEASE DO NOT MODIFY ARTIFACT IDS LIST BELOW.
// Group names
rootProject.extensions.groups = [
        'Main'   : 'com.taobao.gcanvas',
        'Bridge' : 'com.taobao.gcanvas.bridges',
        'Adapter': 'com.taobao.gcanvas.adapters',
]

// Artifact IDs
rootProject.extensions.artifacts = [
        'BridgeSpec'    : 'spec',
        'Core'          : 'core',
        'WeexBridge'    : 'weex',
        'ReactNative'   : 'rn',
        'ImageAdapter'  : 'img',
        'FrescoAdapter' : 'img_fresco',
        'PicassoAdapter': 'img_picasso',
]

You also can find the above configuration information in file of the GCanvas source code root directory --- build.gradle.

WXSDKEngine.registerModule("gcanvas", GCanvasWeexModule.class);
WXSDKEngine.registerComponent("gcanvas", WXGCanvasWeexComponent.class);

Modify AndroidManifest.xml, add below line to acquire OpenGL ES features.

<uses-feature android:glEsVersion="0x00020000" />

You can also build the weex-playground to preview the GCanvas result.The location of weex-playground is GCanvas/android/brigdes/weex-bridge/android/weex-playground

Write Weex Sample

Before write a Weex sample, you should learn Weex Tutorial.

There is a simple page below, find this in path ./bridges/weex-bridge/examples/2d/simple.vue.

<template>
	<div ref="test">
		<gcanvas ref="canvas_holder" style="width:750;height:750;background-color:rgba(0,0,0,0.1)"></gcanvas>
	</div>
</template>
<script>

//for debug
const enable = require('../../../../js/dist/gcanvas.min.js').enable;
const WeexBridge = require('../../../../js/dist/gcanvas.min.js').WeexBridge;
const GImage = require('../../../../js/dist/gcanvas.min.js').Image;


module.exports = {
    mounted: function () {
        var ref = this.$refs.canvas_holder;
        var size = {width:750, height:750};
        var gcanvas = enable(ref, size);
        var ctx = gcanvas.getContext('2d');

        //rect
        ctx.fillStyle = 'red';
        ctx.fillRect(0, 0, 100, 100);

        //rect
        ctx.fillStyle = 'black';
        ctx.fillRect(100, 100, 100, 100);
        ctx.fillRect(25, 210, 700, 5);

        //circle
        ctx.arc(450, 200, 100, 0, Math.PI * 2, true);
        ctx.fill();

		//image
        var image = new GImage();
        image.src = 'https://gw.alicdn.com/tfs/TB1KwRTlh6I8KJjy0FgXXXXzVXa-225-75.png';
        image.onload = function(){
          ctx.drawImage(image, 100, 300);
        };
    }
};
</script>

Run Weex Sample

Fisrt, Use weex-toolkitto create Weex Javascript bundle.
```
weex preview sample.vue
```
There would be lanuch a default browser(Chrome) , and generate Javascript bundle show as qrcode.
Second,Install GCanvasPlayground app run pod install in ios/playground path, and then install GCanvasPlayground app on your iPhone device.

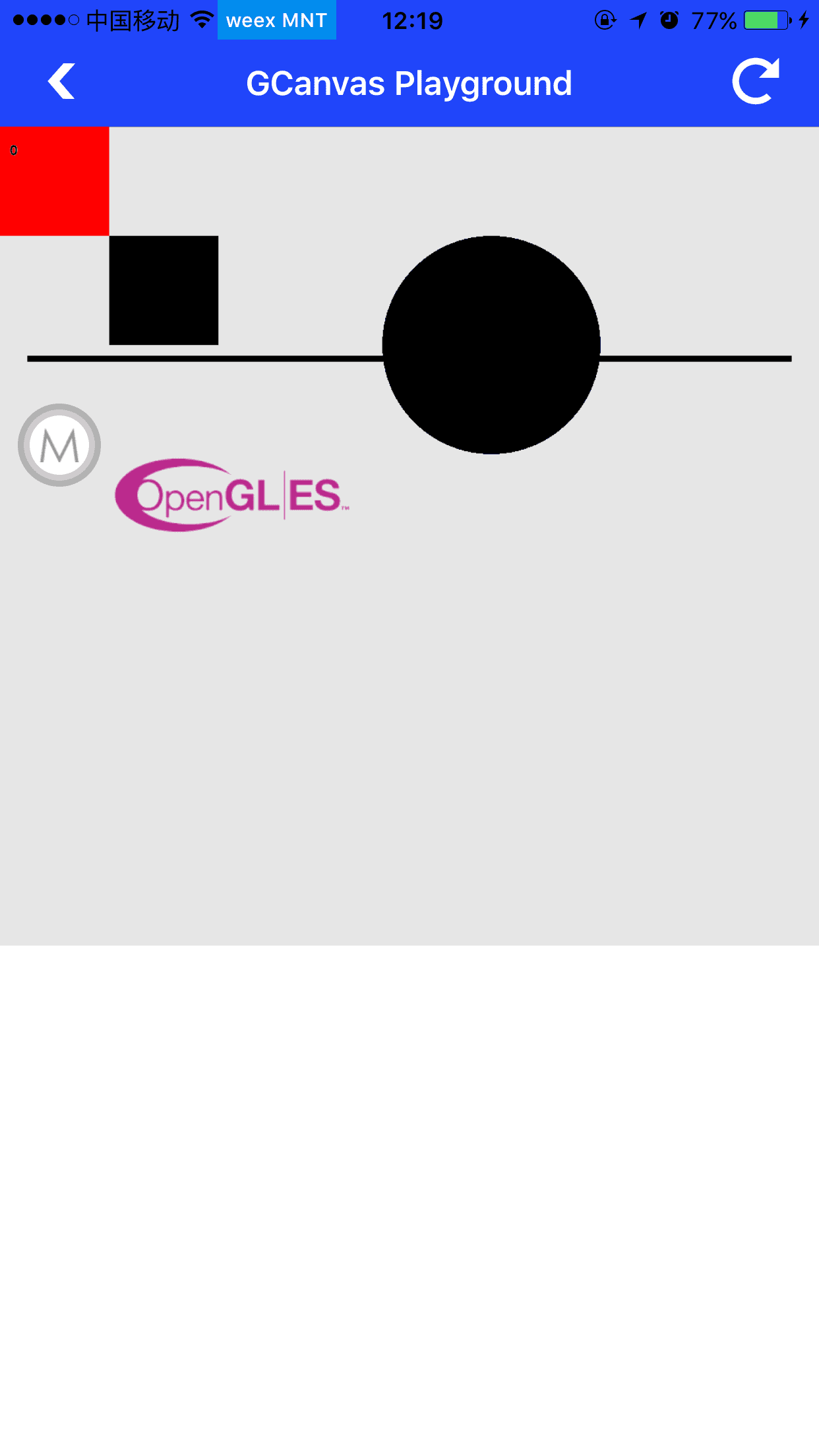

Finally, Run GCanvasPlayground app, scan qrcode created at first setp. If you get reuslt same as below, congratuation.
